CAD Diagram


Specs - Channel Strut Nut Metric Coarse Zinc Silver .pdf

  • QFind41SN8
  • System of MeasurementMetric
  • ProductStrut / Channel Nut
  • SizeM8 (8mm)
  • Size & Thread PitchM8 x 1.25p Coarse
  • Thread Pitch1.25mm
  • Thread DirectionRight Hand
  • Thread TypeMetric - Coarse
  • Corrosion Protection LevelModerate
  • Class GradeLow Tensile Class 4.6
  • MaterialCarbon Steel
  • FinishZinc Plated
  • Spring Length (S)Short Spring (20mm)
  • Nut Width (a)34.00mm
  • Nut Height Overall (b)7.90 - 8.10mm
  • Nut Length (l)18.00 - 20.00mm
  • Closest size in imperial5/16"
  • BrandMacsim

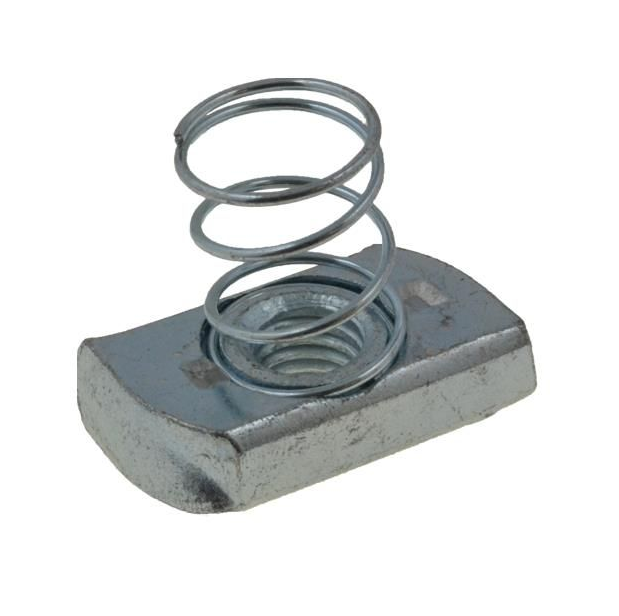

  • Spring Strut / Channel nuts provides a secure anchor point in cable, tray and pipe support systems and other applications where are rectangular nut is required. Simply insert the nut into the trough of the channel, and twist it into position so that the grooves are aligned with the internal edges of the strut. Threading and tightening a screw into the hole causes teeth located in the grooves to bite into the channel edge, positively locking the nut in place so it can’t slip
  • Suitable for: 21mm high channel
  • Other applications: Roof Racks, Aluminium Extrusions
  • Also known as Channel Nuts, Strut Nuts
  • Material / Coating: Zinc Plated is the most common fastener of plating due to its low cost and shiny bright silver finish. A thin layer of zinc is applied either electroplating or mechanically. It is intended to be used internally. Whilst some people use it externally it isn't recommended if corrosion is a concern. If you want a fastener that will withstand the outdoor elements choose from our Stainless steel range
  • Thread Pitch (Metric): is the distance between the peaks of two threads along a screw, bolt, nut or fastener expressed in millimeters (mm). Used when referring to Metric parts. For example, a thread pitch of 1.50mm means that the distance between one thread and the next is 1.50mm
  • Measurements: Every effort has been made to ensure all measurements on our site are accurate and to the relevant standard, they should only be used as a guide. If you see a problem with our specifications please contact us
  • Dimensions: Our stock is sourced from various suppliers, therefore differences may exist between batches such as height, width, visible stamped markings, appearance, or actual finish
  • Photos: are of the product but may not be the actual diameter, height, width, or length you may require, always refer to the size in the description and additional specifications data provided prior to ordering
  • Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
  • Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Bolt and Nut Australia is not responsible for any loss, claim or damages arising therefrom. In developing this information, Bolt and Nut Australia has made a determined effort to present it accurately
Model # N002SPS
Unit Of Measure ea
