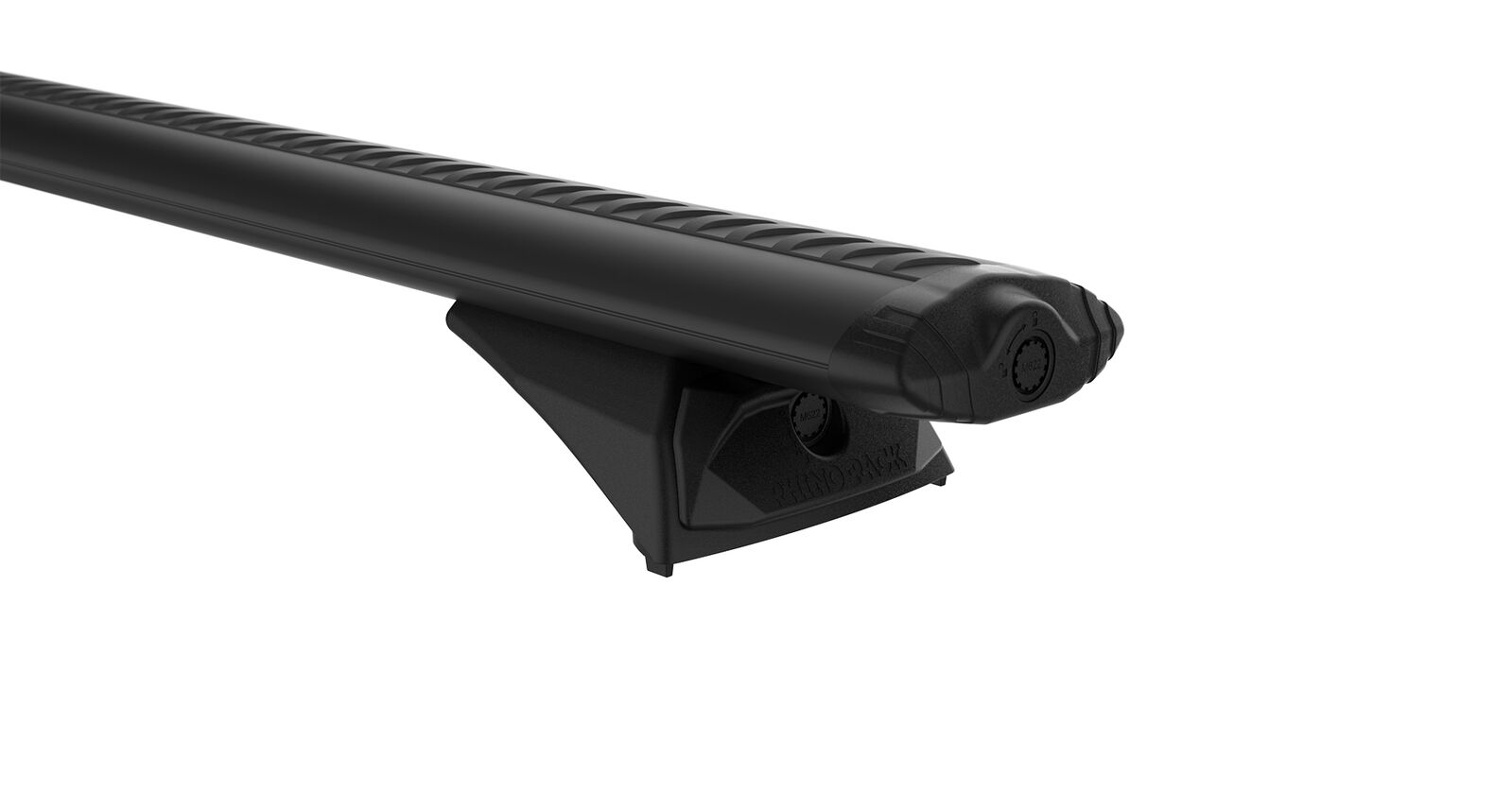

The Vortex RX300L roof rack system is specifically molded to fit a select range of vehicles which feature factory mounting points. By attaching via your vehicle's mounting points, you can be assured of a perfect fit.

What's Included

Your Vortex RX300L Black 2 Bar Roof Rack solution is made up of the following individual parts:

  • 1 x RCP29-BK - RCP Base Kit (x4)
  • 1 x RX300L-4 - RX300 Low leg (4PCS)
  • 2 x VA126B - Vortex Bar (Black 1260mm)

Suitable for Isuzu MU-X Gen1, LS-T 5dr SUV with Roof Rails (From 2013 - 2021)

Spare Parts:

RCP29-BK - RCP Base Kit (x4)

  • B106-BP - M6 X 40mm Hex Set Screw (Stainless Steel) (6 Pack)
  • W003-BP - M6 x 12.5mm Flat Washer (Stainless Steel) (10 Pack)
  • W031-BP - M6 x 16mm x 1.6mm Flat Washer (Stainless Steel) (10 Pack)
  • W004-BP - M6 Spring Washer (Stainless Steel) (10 Pack)

VA126B - Vortex Bar (Black 1260mm)

  • M623-BP - Rhino Secure Core Lock Key (2 Pack)
  • VA-LEC4 - Vortex Locking End Caps (4 Set)
  • VA-SEC4 - Vortex Secure Core Locking End Caps (4)
  • VA-VGS8 - Vortex Generating Strip (8 Pack)
  • SP329 - Vortex Underside Measure Strip (4 Pack)

Utilising our highly regarded Vortex bars, this system offers you compatibility with a wide selection of Rhino-Rack accessories. So whether you're a traveller, cyclist, surfer or tradesperson - the Vortex RX300L roof rack system has you covered.

Features:

  • Removable and easy to install
  • Locking cover with a compartment for an Allen key
  • Low profile
  • Height can be increased using QMVA spacers
  • Maximises roof width with overhang bars
  • Suitable for heavy off-road use
  • Tested and approved to Australian Standards AS1235-2000
  • Comes with precision molded insert cover pads when bars are not in use
  • No. of Bars: 2
  • Bar Length: 1,260 mm
  • Bar Style: Overhang Bar
  • Colour: Black
  • Fixture: Removable
  • Installation Time: 1 h
  • Leg Profile: RX300
  • Mount Style: Factory Mounting Point
SKU JC-02660
Brand Rhino-Rack
