The Sportz RLTF roof rack system is attached to the set of factory tracks on your vehicle's roof. It's high profile design is ideal for highly curved roofs or when the extra height is required to level out multiple bars. In addition to its strength and durability, you have the added benefit of being able to slide your bars along the track to accommodate loads of various length.

What's Included

Your Sportz RLTF Black 4 Bar Roof Rack solution is made up of the following individual parts:

• 2 x LHS-A1PAIR - Vortex Leg Height Spacers
• 4 x RLTFT5 - RLTF Leg (x2)
• 4 x SZ150B - Sportz Bar (Black 1500mm)
• 4 x VA-FK1 - Vortex Bar RL Fit Kit

Suitable for:

• Volkswagen Caravelle 7H 2dr Van LWB (Low Roof) (From 4/2008 - 11/2015)
• Volkswagen Caravelle 7H 2dr Van SWB (Low Roof) (From 4/2008 - 11/2015)
• Volkswagen Caravelle Gen6 2dr Van LWB (From 12/2015-On)
• Volkswagen Kombi 70C 2dr Van SWB (Low Roof) (From 7/2006-On)
• Volkswagen Multivan Gen6 2dr Van LWB (From 12/2015-On)
• Volkswagen Multivan Gen6 2dr Van SWB (From 12/2015-On)
• Volkswagen Multivan T5 2dr Van LWB (Low Roof) (From 6/2005 - 11/2015)
• Volkswagen Multivan T5 2dr Van SWB (Low Roof) (From 6/2005 - 11/2015)
• Volkswagen Transporter Crewvan T6 2dr Van LWB (Standard Roof) (From 12/2015-On)
• Volkswagen Transporter Crewvan T6 5dr Van SWB (Standard Roof) (From 12/2015-On)
• Volkswagen Transporter T5 2dr Van LWB (Low Roof) (From 8/2004 - 11/2015)
• Volkswagen Transporter T5 2dr Van SWB (Low Roof) (From 8/2004 - 11/2015)
• Volkswagen Transporter T6 2dr Van LWB (Standard Roof) (From 12/2015-On)
• Volkswagen Transporter T6 2dr Van SWB (Standard Roof) (From 12/2015-On)

Spare Parts:

RLTFT5 - RLTF Leg (x2)

• B085-BP - M6 x 40mm Button Head Security Screw (Stainless Steel) (6 Pack)
• W003-BP - M6 x 12.5mm Flat Washer (Stainless Steel) (10 Pack)
• N017-BP - M6 Cage Nut Panel 8 (Galvanised) (10 Pack)
• B062-BP - M6 x 20mm Button Security Screw (Stainless Steel) (6 Pack)
• W021-BP - M10 Internal Shake Proof Washer (Galvanised) (10 Pack)
• N024-BP - M10 Channel Nut (4 Pack)
• B071-BP - M10 x 25mm Hex Set Screw (Galvanised) (4 Pack)
• W004-BP - M6 Spring Washer (Stainless Steel) (10 Pack)

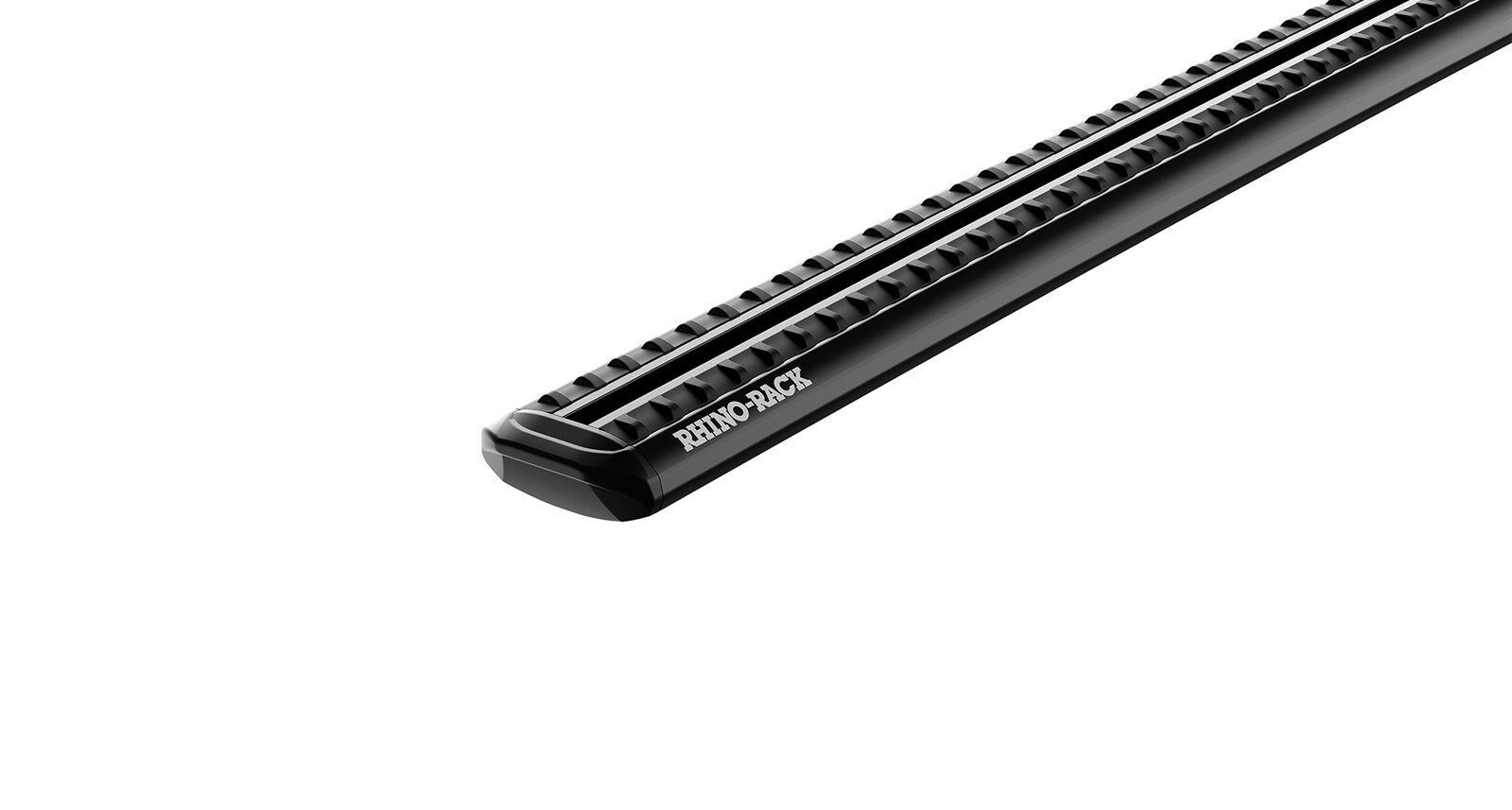

SZ150B - Sportz Bar (Black 1500mm)

• SZ-EC4 - Sportz Bar End Cap Spare Set (4pc)
• SZ-VGS10 - Sportz Bar Vortex Generating Twin Strip Spare Kit (10pc)
• SZ-WLS - Sportz Bar Spare Width Sliders (2pc)
