Rhino-Rack Sportz RLT600 Trackmount Black 3 Bar Roof Rack JC-04362

The Sportz Quick Mount RLT600 roof rack system is fixed to your roof using a specialised track. However the legs and bars can be easily removed when required using a simple trigger locking system.

What's Included

Your Sportz RLT600 Trackmount Black 3 Bar Roof Rack solution is made up of the following individual parts:

1 x RLT600 - Quick Mount Leg (x4)
1 x RTS538 - RTS Tracks
1 x RLT600H - Quick Mount Leg (x2)
1 x QMVA15 - Quick Mount Vortex Spacer 15mm
1 x QMVA10 - Quick Mount Vortex Spacer 10mm
1 x QMW10 - Quick Mount Base Wedge (10mm)

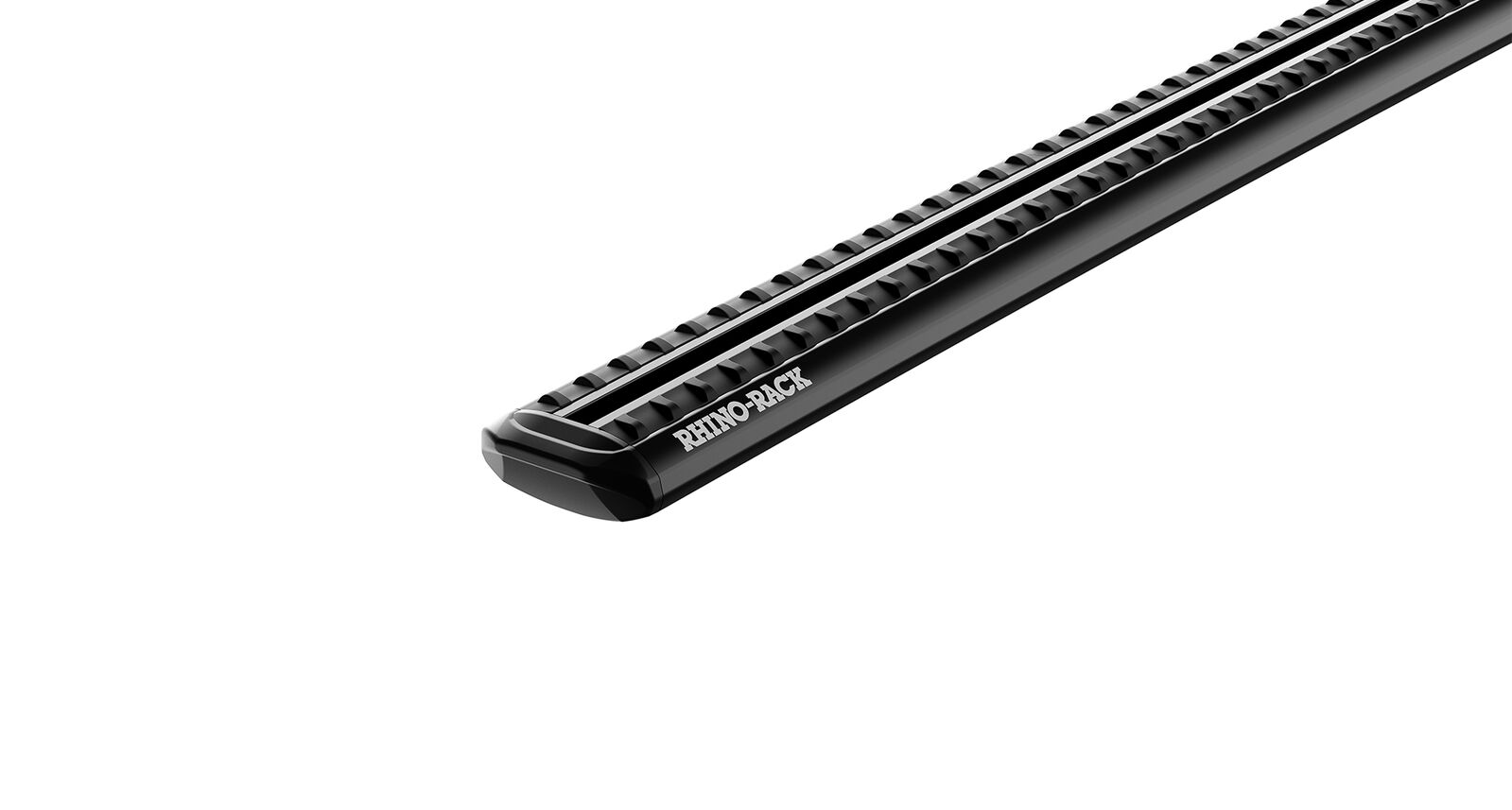

3 x SZ126B - Sportz Bar (Black 1260mm)

Suitable for Isuzu MU-X Gen1, LS-T 5dr SUV (From 1/2013 - 12/2021).

Spare Parts:

QMW10 - Quick Mount Base Wedge (10mm)

B137-BP - M6 x 25mm Security Screw (Stainless Steel) (6 Pack)
B062-BP - M6 x 20mm Button Security Screw (Stainless Steel) (6 Pack)

RLT600 - Quick Mount Leg (x4)

B054-BP - M6 x 20mm Socket Head Screw (Stainless Steel) (4 Pack)
B061-BP - M6 x 16mm Button Security Screw (Stainless Steel) (6 Pack)
M982-BP - RLT600 Rubber Grommet (4 pack)
N057-BP - M6 24mm x 21mm x 4mm Nut (Galvanised) (4 Pack)
N068-BP - M6 24mm x 24mm x 4mm Nut (Galvanised) (4 Pack)
QMFK02 - Quick Mount Leg Base and Cover
RLT600H - Quick Mount Leg (x2)
SP243 - RLT600 Replacement Leg Assembled
SP327 - RLT600 Replacement Locking Covers (4 Pack)
SP328 - RLT600 Replacement Base Covers (4 Pack)
W003-BP - M6 x 12.5mm Flat Washer (Stainless Steel) (10 Pack)
W004-BP - M6 Spring Washer (Stainless Steel) (10 Pack)
W031-BP - M6 x 16mm x 1.6mm Flat Washer (Stainless Steel) (10 Pack)

RLT600H - Quick Mount Leg (x2)

B054-BP - M6 x 20mm Socket Head Screw (Stainless Steel) (4 Pack)
B061-BP - M6 x 16mm Button Security Screw (Stainless Steel) (6 Pack)
M982-BP - RLT600 Rubber Grommet (4 pack)
N057-BP - M6 24mm x 21mm x 4mm Nut (Galvanised) (4 Pack)
N068-BP - M6 24mm x 24mm x 4mm Nut (Galvanised) (4 Pack)
QMFK02 - Quick Mount Leg Base and Cover
SP243 - RLT600 Replacement Leg Assembled
SP327 - RLT600 Replacement Locking Covers (4 Pack)
SP328 - RLT600 Replacement Base Covers (4 Pack)
W003-BP - M6 x 12.5mm Flat Washer (Stainless Steel) (10 Pack)
W004-BP - M6 Spring Washer (Stainless Steel) (10 Pack)
W031-BP - M6 x 16mm x 1.6mm Flat Washer (Stainless Steel) (10 Pack)

RTS538 - RTS Tracks

W019-BP - M8 Spring Washer (Stainless Steel) (10 Pack)
W020-BP - M8 x 17mm Flat Washer (Stainless Steel) (10 Pack)
CA1260-BP - Butyl Patch Seal 40 x 25mm (10 pack)
CA1397-BP - Butyl Patch Seal 20 x 20mm (10 Pack)

SZ126B - Sportz Bar (Black 1260mm)

SZ-EC4 - Sportz Bar End Cap Spare Set (4pc)
SZ-VGS10 - Sportz Bar Vortex Generating Twin Strip Spare Kit (10pc)
SZ-WLS - Sportz Bar Spare Width Sliders (2pc)

Utilising our highly regarded Sportz bars, this system offers you compatibility with a wide selection of Rhino-Rack accessories. So whether you're a traveller, kayaker, surfer, cyclist or tradesperson - the Sportz RLT600 roof rack system has you covered.

Features:

No tools required for installation and removal once system has been initially fitted
Ideal for low clearance
A lockable cover plate that protects the locking mechanism, Masterkey compatible
Fits the Rhino-Rack Sportz Bar, with a fitting kit available for the Heavy Duty Bar and Pioneer models
The base and leg allows for 33 degrees of swivel to suit tracks mounted on a contoured or curved surface
The great benefit of this roof rack system is the ability to slide your cross bars along the track to accommodate various sized loads
Single person operation allows quick and easy attachment
Simple trigger locking system
Having a trackmount system allows for a heavier load rating
Tested to AS1235:2000 (Australian), ISO11154:2006 (City Crash/International) standards
Lifetime Warranty

No. of Bars: 3
Bar Length: 1,260 mm
Bar Style: Overhang Bar
Colour: Black
Fixture: Fixed
Installation Time: 2 h
Leg Profile: RLT600
Mount Style: Track Mount

SKU	JC-04362
Brand	Rhino-Rack
Shipping Weight	8.0000kg
Shipping Width	1.300m
Shipping Height	0.150m
Shipping Length	0.200m
Shipping Cubic	0.039000000m3
