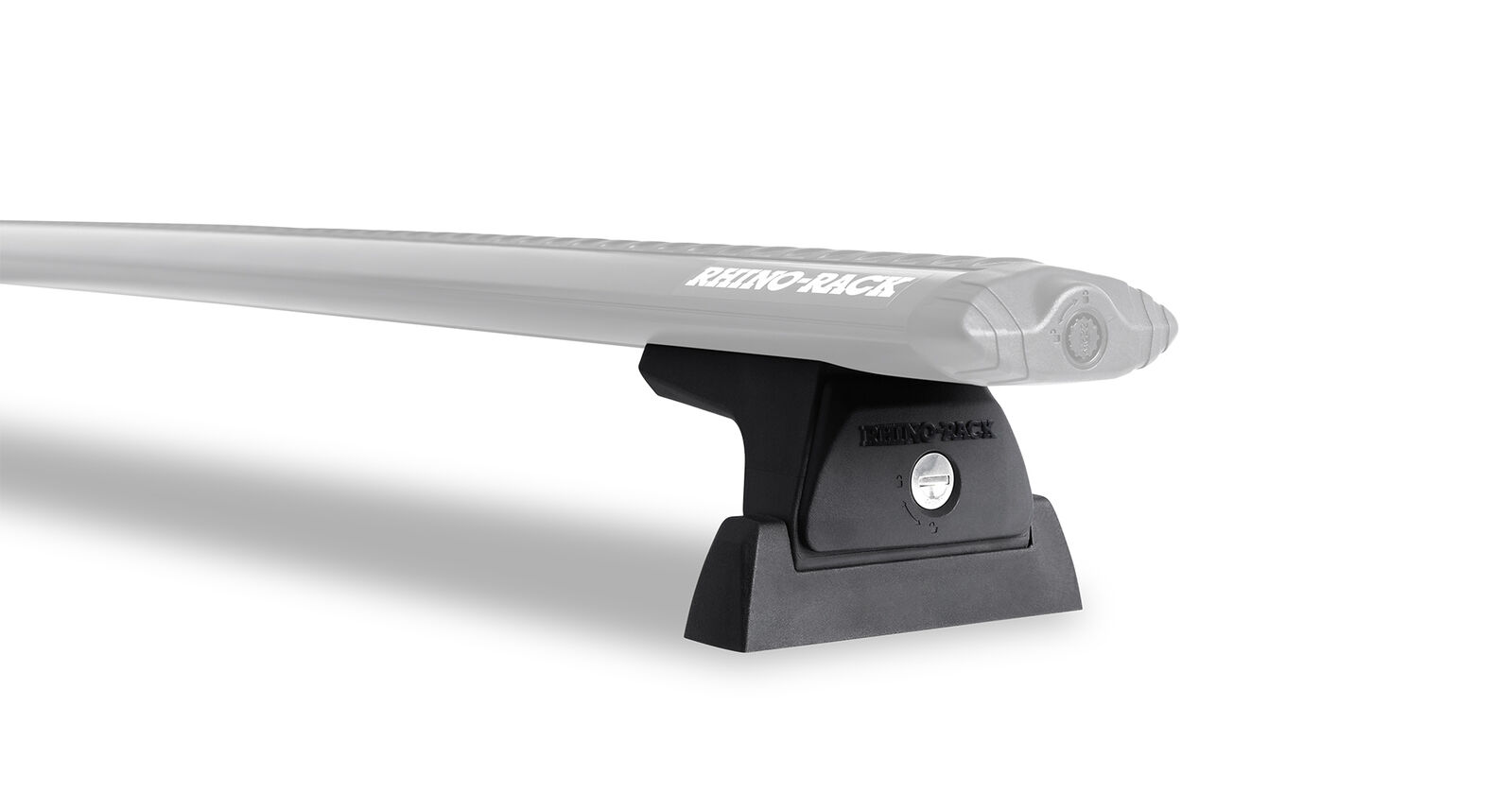

Rhino-Rack Sportz RLT600 Ditch Mount Black 2 Bar Roof Rack JC-04388

The Sportz RLT600 Ditch Mount roof rack system fits neatly into your vehicle's roof ditch. Once installed, the legs and cross bars can easily be removed when they are not required using a simple trigger locking system.

What's Included

Your Sportz RLT600 Ditch Mount Black 2 Bar Roof Rack solution is made up of the following individual parts:

1 x RLT600 - Quick Mount Leg (x4)
2 x QMFK15 - Quick Mount Ditch Bracket
2 x SZ126B - Sportz Bar (Black 1260mm)

Suitable for Suzuki APV 5dr Van (From 6/2005-On).

Spare Parts:

QMFK15 - Quick Mount Ditch Bracket

CA1397-BP - Butyl Patch Seal 20 x 20mm (10 Pack)

RLT600 - Quick Mount Leg (x4)

B054-BP - M6 x 20mm Socket Head Screw (Stainless Steel) (4 Pack)
B061-BP - M6 x 16mm Button Security Screw (Stainless Steel) (6 Pack)
M982-BP - RLT600 Rubber Grommet (4 pack)
N057-BP - M6 24mm x 21mm x 4mm Nut (Galvanised) (4 Pack)
N068-BP - M6 24mm x 24mm x 4mm Nut (Galvanised) (4 Pack)
QMFK02 - Quick Mount Leg Base and Cover
RLT600H - Quick Mount Leg (x2)
SP243 - RLT600 Replacement Leg Assembled
SP327 - RLT600 Replacement Locking Covers (4 Pack)
SP328 - RLT600 Replacement Base Covers (4 Pack)
W003-BP - M6 x 12.5mm Flat Washer (Stainless Steel) (10 Pack)
W004-BP - M6 Spring Washer (Stainless Steel) (10 Pack)
W031-BP - M6 x 16mm x 1.6mm Flat Washer (Stainless Steel) (10 Pack)

SZ126B - Sportz Bar (Black 1260mm)

SZ-EC4 - Sportz Bar End Cap Spare Set (4pc)
SZ-VGS10 - Sportz Bar Vortex Generating Twin Strip Spare Kit (10pc)
SZ-WLS - Sportz Bar Spare Width Sliders (2pc)

Utilising our highly regarded Sportz bars, this system offers you compatibility with a wide selection of Rhino-Rack accessories. The included Quick Mount Ditch Bracket provides a permanent mounting point for the bars and legs, which also helps give the system a seamless and aesthically pleasing appearance. So whether you're a traveller, kayaker, surfer, cyclist or tradesperson - the Sportz RLT600 Ditch Mount roof rack system has you covered.

Features:

Ideal for low clearance
A lockable cover plate that protects the locking mechanism, Masterkey compatible
Fits the Rhino-Rack Sportz Bar, with a fitting kit available for the Heavy Duty Bar and Pioneer models
The base and leg allows for 33 degrees of swivel to suit contoured or curved surfaces
Single person operation allows quick and easy attachment/detachment - the bars/legs can be removed whenever you don't require them (no tools required!)
Simple trigger locking system
Tested to AS1235:2000 (Australian), ISO11154:2006 (City Crash/International) standards
Lifetime Warranty

No. of Bars: 2
Bar Length: 1,260 mm
Bar Style: Overhang Bar
Colour: Black
Fixture: Removable
Leg Profile: RLT600
Mount Style: Ditch Mount
